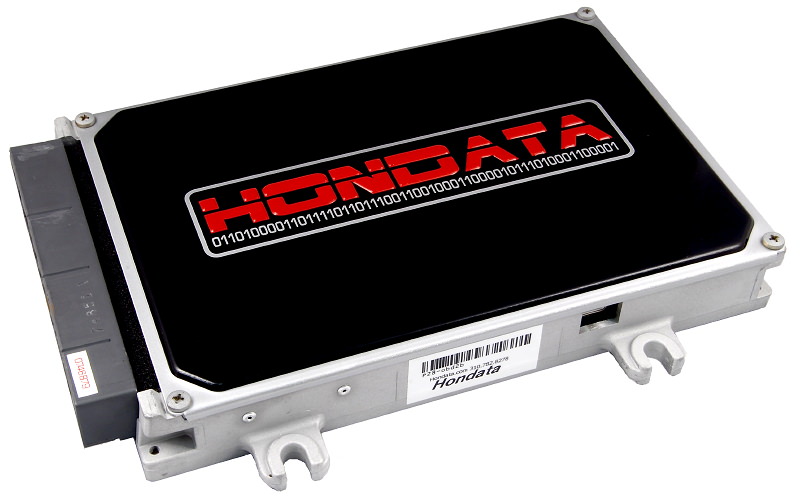

Hondata S300 For Honda OBD1 ECUs

For Honda Civic 92-98 OBDI ECUs

O κορυφαίος εγκέφαλος με τις πολλαπλές δυνατότητες για χρήση turbo η ατμοσφαιρική με δυνατότητα Live Tuning.

Επίσης υπάρχει η δυνατότητα να σας εγκαταστήσουμε Base Map (Pre Tune) αφού πρώτα συμπληρώσετε την επισυναπτόμενη φόρμα και μας την στείλετε στο info@geartech.gr.H συγκεκριμένη υπηρεσία αφορά μόνο για ατμοσφαιρικούς κινητήρες και το Extra κόστος σε αυτήν την περίπτωση θα είναι 100€.Προαιρετικά μπορεί να πραγματοποιηθεί ρύθμιση στο ιδιόκτητο δυναμόμετρο μας όπου θα σας παρέχουμε πλήρης τεχνική υποστήριξη. Επίσης ο πελάτης έχει τη δυνατότητα να παρακολουθήσει real time τον προγραμματισμό του δικού του αυτοκινήτου καθώς και όλα τα στάδια τεχνικής υποστήριξης από την ομάδα της Geartech Engineering. Για την υπηρεσία αυτή πιέστε το κουμπi :

The s300 is a plug in module to the OBD1 factory Honda Engine Computer (ECU) which vastly expands the capabilities of the factory ECU. Forced induction, datalogging, real time updating of parameters, engine protection are but a few of the s300 features.

Features

New features for Version 2:

    8 analog inputs.(datalogging only)
    1 digital input. (datalogging only)
    Additional security to help identify and prevent theft
    Datalogging memory doubled in size for up to 2 hours recording.
    Non battery memory backup for greater reliability and longer life.
    On board calibration storage.

Main features:

    Fits inside the ECU
    USB connection for speed and compatibility
    SManager Windows based software for parameter & table editing, calibration uploading and datalogging.
    Real-time updating of ECU parameters & tables.
    Built in calibrations for common engine combinations
    Built in datalogging to a laptop
    On board datalogging memory (8 MB memory, 20-240 minutes datalogging) with trigger conditions.
    Adjustment for different sized injectors, with overall fuel trim.
    Configurable for any MAP sensor (to at 5 Bar and above)
    TPS based table lookup for ITBs
    Engine protection from over boost.
    Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)
    Launch control with anti-lag
    Full throttle shift
    Three multi purpose outputs for nitrous control or similar
    Supports lambda tracing from a wideband o2 (PLX wideband recommended)
    PWM output for boost control with fixed or gear based boost.
    Dual tables for high/low octane calibrations etc.
    Two analog inputs for wideband, EGTs etc.
    High and low speed 24 x 20 ignition and fuel tables for correct VTEC tuning
    Injector size fuel trim
    Fuel trim for starting, throttle tip in and individual cylinder trim
    Rev limiter with fuel cut or fuel and ignition cut
    Launch control with anti-lag
    Full throttle shift
    Adjustable VTEC window with load and throttle control
    Secondary intake runner control
    Adjustable idle speed
    Adjustable boost cut with hot and cold settings
    Shift light
    Closed loop control
    Air temperature compensation
    Water temperature compensation
    Fuel and ignition correction based on gear
    A/C shutoff conditions
    Closed loop
    Three general purpose outputs for nitrous control, quad boost control or similar

The s300 uses different connecting pins in the ECU from the s100/s200, and also has a slot cut in the side for the USB connector, so the ECU must be modified for use with the s300.

USB Connection

The s300 uses a high speed USB connection for both programming calibrations and datalogging.  No more USB/serial connectors!

Real-time Update

The s300 can be updated in real-time with the engine running without affecting the operation of the vehicle.  This means that calibrations and changes can be uploaded to the ECU very quickly (2 seconds for a new calibration, a fraction of a second for anything else), without interrupting the operation of the engine.  Changes made in the SManager software are uploaded to the ECU instantly and you can see the effect immediately.  The s300 does not use an EEPROM or equivalent, so you never need to open the ECU to change chips nor 'burn' ROMs. No EPROM programmer is necessary - you just need a laptop with USB port.

Datalogging

The s300 has datalogging to the SManager software built in via the USB port. Using a laptop the various ECU sensors can be datalogged, viewed, graphed and saved for later analysis.

Additionally the s300 has on board flash memory which allows a datalog recordings to be made without a laptop, for later access and download to a laptop.  Multiple recordings can be made and stored in the s300 for a total of around 40 minutes of total datalogging time.  An external switch can be used to start and stop recordings, or engine conditions can trigger recording.  For instance in a drag race, the s300 can be set to start recording once the rpm is bought up to near launch rpm and automatically stop once past the traps and the rpm drops below a certain level.

MAP Sensor Compatibility

Any linear MAP sensor can be used, using a scalar and offset to translate the MAP sensor characteristics into pressure.  Popular MAP sensor settings are built in for ease of setup.  To do this you will need the map sensor calibration numbers from the manufacturer of the sensor.

ECU Preparation

Details on preparing the ECU can be found here.  It is strongly recommended that you have this professionally installed as this is more difficult to install than an s200 and if the ECU has been previously socketed you run an even higher risk of damaging the ECU (lifting tracks and or burning them).

Why buy the s300 over the competition?

    Hondata has been the market leader in Honda ECU re-programming for over a dozen years, and is the innovator in the market. We are the only company to offer comprehensive support (email, phone and forum) for products we sell, and have a full time, professional development team.  This means quicker response to support questions and higher quality software. We also are the only true company operating in the market - we are no going to suddenly stop development and support of out products, leaving our customers with a worthless investment.
    Hardware.  The s300 is the only hardware specifically designed for a Honda ECU. This means the s300 fits straight into the ECU without any jumper wires or adapters and the USB cable plug is accessible without needing to remove the ECU lid.  The s300 is also more securely fastened with multiple support posts.
    More hardware.  The s300 has analog inputs which are useable without surface mount soldering skills.  It also is the only product using the latest battery-less non-volatile emulation technology, and anti-theft features built right into the hardware.
    Software.  Our software is the easiest to use and has the greatest number of features to help you tune your vehicle.  Many tuners charge less to customers who use our software because it is quicker and easier to use than any other software.
